CCTV Camera Cable RG59 2C Power Wire

CCTV Camera Cable RG59/2C Power Wire

Introduction

CCTV Camera Cable RG59/2C Power Wire is a special cable designed to transmit both video and power signals in a single cable. It has become a popular option because it simplifies the installation process and reduces costs while providing a high-quality video signal. This cable comes with two types of connectors, BNC and power connectors, depending on the type of CCTV camera being used.

Specifications

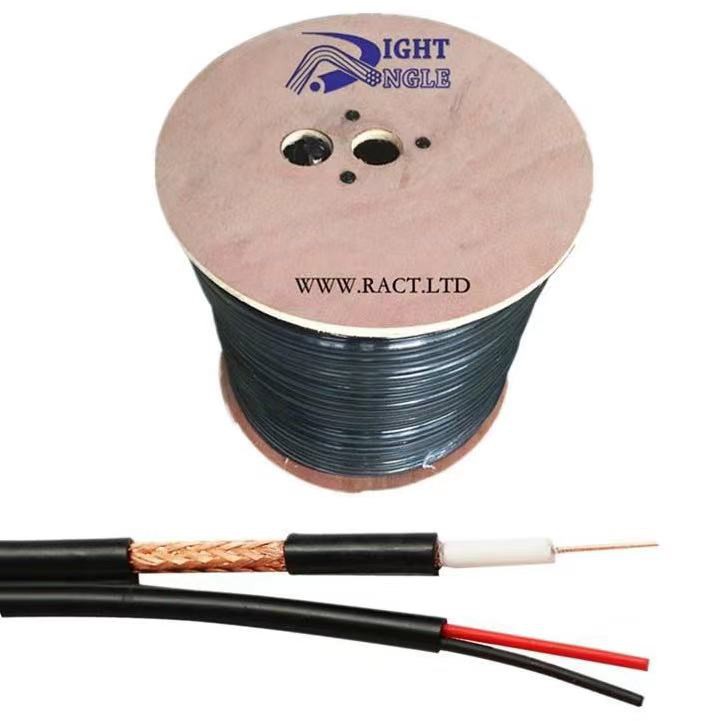

The CCTV Camera Cable RG59/2C Power Wire consists of a coaxial cable and a stranded wire. The coaxial cable is responsible for transmitting the video signal and has 75-ohm impedance. The stranded wire is responsible for transmitting the power signal and can vary in size and gauge depending on the distance of the camera from the power source.

The typical specifications of CCTV Camera Cable RG59/2C Power Wire are:

- Coaxial Cable Type: RG59/U
- Coaxial Cable Impedance: 75 Ohm
- Inner Conductor: Solid Copper Clad Steel (CCS)
- Dielectric: Foam Polyethylene (PE)
- Shield: Aluminum Foil
- Jacket Material: PVC
- Jacket Color: Black
- Stranded Wire Type: 2 Cores, 18 AWG
- Voltage Rating: 300V
- Temperature Rating: -20°C to 75°C
- Cable Length: 100m, 200m, or customized

BNC Connectors

BNC connectors are the most popular connectors for CCTV cameras. They are commonly used to terminate the end of the coaxial cable to connect the camera to the DVR or monitor. The BNC connector has a bayonet-style locking mechanism that ensures a secure and reliable connection. It is easy to install and remove.

Power Connectors

Power connectors are used to provide power to the CCTV camera. They are available in various sizes and shapes, depending on the type of camera being used. They have a positive and negative terminal that connects to the stranded wire of the cable.

Installation

Installing CCTV Camera Cable RG59/2C Power Wire is very easy. The first step is to measure the distance between the camera and the power source. This will determine the size and gauge of the stranded wire to be used. Once the wire is selected, strip off the outer jacket and separate the coaxial cable and the stranded wire. Strip off the dielectric of the coaxial cable and attach the BNC connector. Strip off the insulation of the stranded wire and attach the power connector. Finally, connect the BNC and power connectors to the camera and the DVR or monitor.
