2 Pair Network Cable

2 Pair Network Cable are widely used in the data communication industry because they are one of the most reliable types of cables. These cables are known for their ability to transmit data at high speeds over long distances.



Construction



2 Pair Network cables are made up of four twisted pairs of wires. The wires are usually made of copper and are coated with a thin layer of plastic insulation. The cables are then shielded with a layer of aluminum foil or braided copper wire for added protection against interference.





Types



There are several types of 2 Pair Network cables available in the market. Some of the most commonly used ones include:



1. Cat5e: This cable can handle speeds of up to 1Gbps and is used for basic networking.



2. Cat6: This cable can handle speeds of up to 10Gbps and is used for more advanced networking.



3. Cat7: This cable can handle speeds of up to 40Gbps and is used for high-performance networking.





Uses



The most common use of 2 Pair Network cables is in local area networks (LANs). They are used to connect devices such as computers, printers, and servers to the network. They are also used in wide area networks (WANs) to connect remote networks over a long distance.

Advantages



One of the main advantages of 2 Pair Network cables is their reliability. These cables have been used for many years and have been proven to be very reliable. They also provide high-speed data transmission, which is essential in today’s fast-paced digital world.



Another advantage of 2 Pair Network cables is their durability. These cables are made of high-quality materials and are designed to last for many years. They are also resistant to interference, which ensures that the data transmitted over the network is not corrupted.







Maintenance



Like any other network cable, 2 Pair Network cables require regular maintenance to ensure that they continue to function properly. Regular inspections and testing should be done to detect any damage or faults that may cause the cable to fail. It is also important to ensure that the cable is properly terminated to avoid signal loss and data corruption.







Conclusion



In conclusion, 2 Pair Network cables are a reliable and efficient way to transmit data over a network. They are made of high-quality materials and are built to last for many years. They provide high-speed data transmission and are resistant to interference, which ensures that the data transmitted over the network is not corrupted. With proper maintenance, these cables can deliver the desired performance, making them the go-to option for many businesses and organizations.

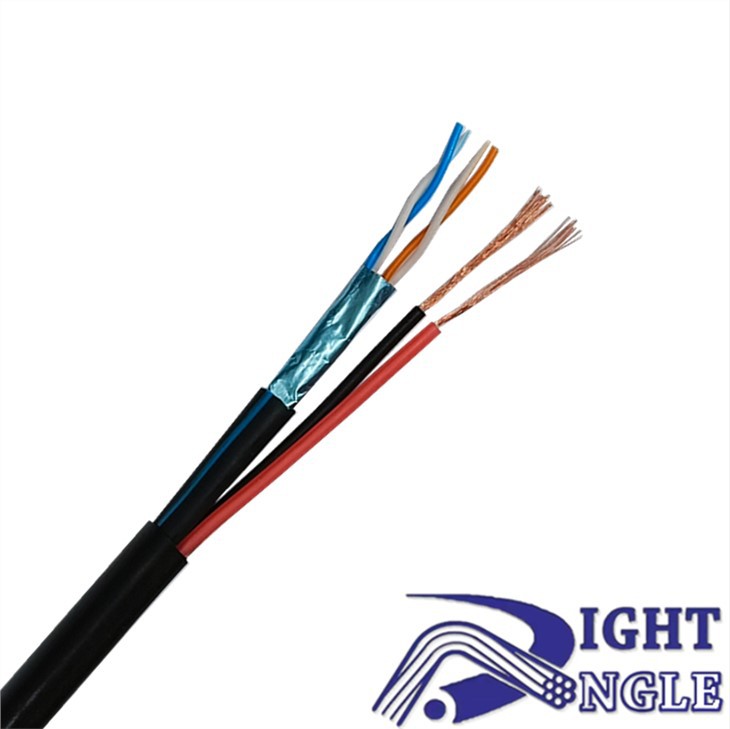

Special monitoring cables for network digital high-definition cameras, 2 pairs of data transmission cables have better signal quality, optimized for crosstalk, loss and other details. Extra Power can reduce unnecessary repetitive wiring steps.



Product Specification

Conductor	Material	BC
	Diameter	0.42 mm ± 0.02 mm
	Number of cores	2 × 2
Insulation	Material	HDPE
	Diameter Diameter	0.9 mm ± 0.1 mm
AL Foil	Construction	With Foil
	Material	AP
Jacket	Material	PVC
	Diameter	4.6 mm ± 0.3 mm
Power Conductor	Material	BC
	Diameter	2 × [ 19 × ( 0.12mm ± 0.02 mm ) ]
Power Insulation	Material	PE
	Diameter	1.8 mm ± 0.3 mm
Outer sheath	Material	PE
	Diameter	5.8 mm ± 0.3 mm



Packing

Single package	Wooden Drum
Package length	500 m
Outer package	Color box



Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	>8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Color Migration Resistance of Insulation	No migration
Sheath Tensile Strength and Elongation at Break after Aging	≥12.5 MPa, ≥100%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)
Installation Temperature	0°C to +50°C (32°F to 122°F)



Certifications and Standards

Vertical Fire Propagation Test	Comply with IEC 60332-1-2
Certification	CPR Eca
