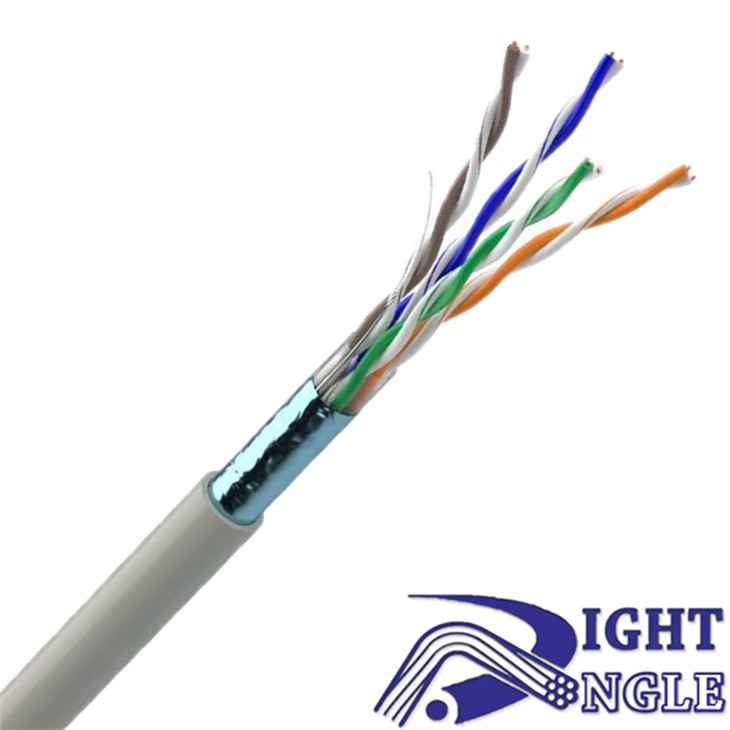

FTP Cat5e Ethernet Cable

Ethernet cables are used to connect devices in a Local Area Network (LAN). The FTP Cat5e Ethernet Cable is a type of Ethernet cable that is used for high-speed networks. This cable has four twisted pairs of copper wires and is shielded to prevent interference from other devices. The FTPCat5eEthernetCable is designed to connect devices such as computers, routers, switches, and servers in a LAN, providing high-speed data transfer.

Features

The FTP Cat5e Ethernet Cable has several features that make it suitable for high-speed networks. These features include:

1. Shielding: The FTP Cat5e Ethernet Cable is shielded to prevent interference from other devices. This shielding ensures that the data transfer between devices is not affected by external factors.

2. Copper wires: The FTP Cat5e Ethernet Cable has four twisted pairs of copper wires. These copper wires provide high-speed data transfer, making it easier to transfer large files.

3. Connectors: The FTP Cat5e Ethernet Cable has RJ45 connectors at both ends. These connectors ensure that the cable can be easily plugged into devices such as computers, routers, switches, and servers.

4. Support for Ethernet standards: The Cat5e Ethernet Cable supports the Ethernet standards, including 10BASE-T, 100BASE-TX, and 1000BASE-T. This makes the cable suitable for use in high-speed networks.

Advantages

1. High-speed data transfer: The Cat5e Ethernet Cable provides high-speed data transfer, making it ideal for networks that require the transfer of large files.

2. Minimal interference: The shielding on the cable prevents interference from other devices, ensuring that the data transfer is not affected.

3. Easy to use: The connectors on the cable make it easy to plug into devices such as computers, routers, switches, and servers.

4. Support for Ethernet standards: The Cat5e Ethernet Cable supports the Ethernet standards, making it suitable for use in a wide range of devices.

Applications

The FTP Cat5e Ethernet Cable is used in several applications, including:

1. Home networks: The cable is used to connect devices such as computers, printers, and gaming consoles in a home network.

2. Business networks: The FTP Cat5e Ethernet Cable is used to connect devices such as computers, servers, and printers in a business network.

3. Educational institutions: The cable is used in educational institutions to connect devices such as computers, laptops, and projectors in a network.

4. Data centers: The FTP Cat5e Ethernet Cable is used in data centers to connect servers and switches in a network.



Product Specification

Conductor	Material	BC (Customized: CCA / CCC)
	Diameter	0.51 mm ± 0.02 mm
	Wire Gauge	24 AWG
Insulation	Material	HDPE
	Diameter	0.92 mm ± 0.1 mm
Rip Cord	Material	Polyester
	Specification	500 D
Shield	Material	Foil
	Coverage	≥ 10%
Jacket	Material	PVC (Customized: PE/PVC+PE/LSZH)
	Diameter	5.1 mm ± 0.3 mm



Packing

Single package	Easy pull box
Package length	305m (Optional custom length)
Outer package	Carton box (2×Easy pull box)
Waterproof packaging	Optional



Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	> 8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)



Certifications and Standards

Vertical Fire Propagation Test	Comply with IEC 60332-1-2
Certification	CPR Eca
Executive Standards	Q/DXJ 067-2019, EN50575-2014
