SFTP Cat6 Ethernet Cable

This is Hangzhou Right Angle Cable Technology Co., Ltd., let me introduce our products to you. This product is made of brand-new materials. The production process is very complicated. It can be used in large-scale interference places and is suitable for use in any place. Install. The double-shielded structure of aluminum foil and braid is used. The braided 90% coverage and the full coverage of aluminum foil can shield most of the interference signals. The conductors are made of new copper material, which has good transmission effect and low loss.



Introduction



SFTP Cat6 Ethernet Cable is a high-quality and reliable networking cable, designed specifically for use in modern computing environments. This cable provides a high-speed connection between a device and a network. The cable has been engineered to deliver exceptional performance, high-quality signal transmission, and superior security features.





What is SFTP Cat6 Ethernet Cable?

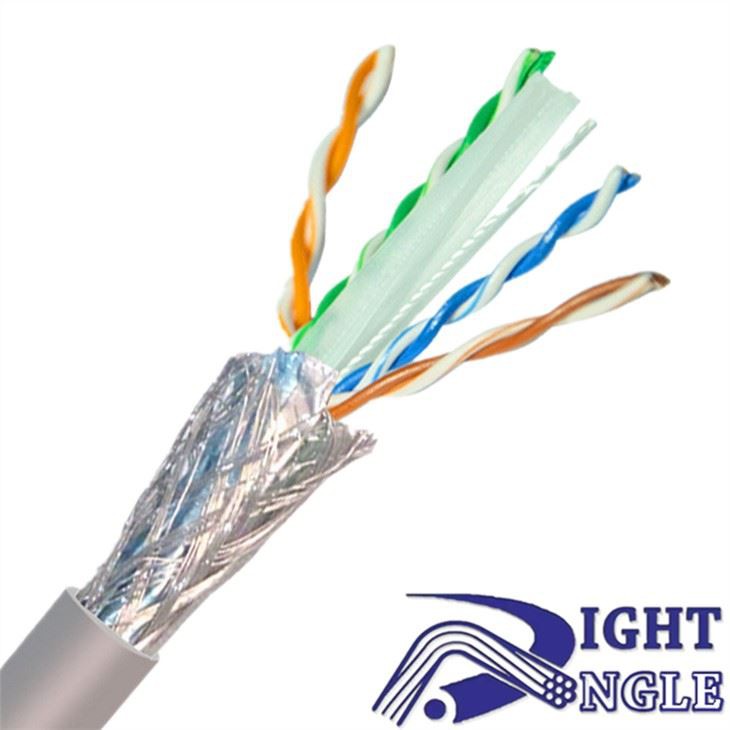

SFTP Cat6 Ethernet Cable is a networking cable that has been specifically designed to provide high-speed connections between a device and a network. The cable has been designed with an overall braided shield and a foil shield on every pair of wires. This design provides a greater level of protection from electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring consistent and high-quality signal transmission.



The cable is made of high-quality materials that make it reliable, sturdy, and long-lasting. The cable's construction includes four twisted pairs of copper wires and a PVC jacket, which give the cable exceptional flexibility and durability. The cable's ends are fitted with RJ45 connectors, which make it easy to connect to a device or network port.





Quality and Safety Features



SFTP Cat6 Ethernet Cable is a product of exceptional quality, designed to deliver the highest level of performance and durability. The cable's quality features include:



1. High-Speed Performance

The cable is designed to provide high-speed connectivity, capable of delivering data transfer rates of up to 10Gbps. This high-speed performance makes it ideal for use in data centers, enterprises, and other high-speed applications.

2. Exceptional Signal Transmission

The cable's design ensures exceptional signal transmission, with minimal signal loss and interference. This feature ensures that data is transmitted reliably and with a high degree of accuracy, making it ideal for use in mission-critical applications.

3. Durability

The cable's construction includes high-quality materials that make it durable and long-lasting. These materials are designed to withstand the rigors of regular use, making the cable ideal for use in harsh environments.

4. Safety

The cable's design ensures a high degree of safety, with exceptional protection from electromagnetic and radio frequency interference. This safety feature ensures that data transmission is secure, with minimal risk of data loss or corruption.







Application Areas



SFTP Cat6 Ethernet Cable is ideal for use in a range of application areas, including:

1. Data Centers

The cable's high-speed performance and exceptional signal transmission make it ideal for use in data centers. The cable's design ensures that data is transmitted reliably and with minimal interference, making it essential for use in critical applications.

2. Enterprises

The cable is ideal for use in enterprise networks, including offices and departments, where high-speed and secure connectivity is essential.

3. Internet Service Providers

SFTP Cat6 Ethernet Cable is perfect for use in internet service provider networks, providing reliable and high-speed connectivity to customers.

4. Audio/Video

The cable's design ensures exceptional signal transmission, making it ideal for use in audio and video applications.



Product Specification

Conductor	Material	BC ( Customized: CCA / CCC )
	Diameter	0.57 mm ± 0.02 mm
	Wire Gauge	23 AWG
Insulation	Material	HDPE
	Diameter	1.02 mm ± 0.1 mm
Separator	Material	PE
	Specification	4.5 mm ± 0.2mm
	Thickness	0.4 mm ± 0.02mm
Rip Cord	Material	Polyester
	Specification	500 D
Shield	Material	Foil
	Overlap rate	≥ 10 %
Braid	Material	CU / CCA / TC
	Coverage	80% - 98%
Jacket	Material	PVC (Customized optional: PE/PVC+PE/LSZH)
	Diameter	6.4 mm ± 0.3 mm



Packing

Single package	Easy pull box
Package length	305m (Optional custom length)
Outer package	Carton box (2×Easy pull box)
Waterproof packaging	Optional



Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	>8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)



Certifications and Standards

Vertical Fire Propagation Test	Comply with IEC 60332-1-2
Certification	CPR Eca
Executive Standards	Q/DXJ 067-2019, EN50575-2014
