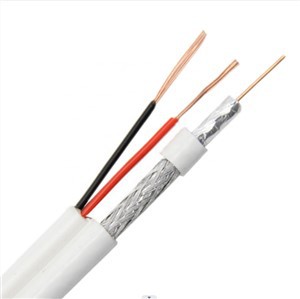

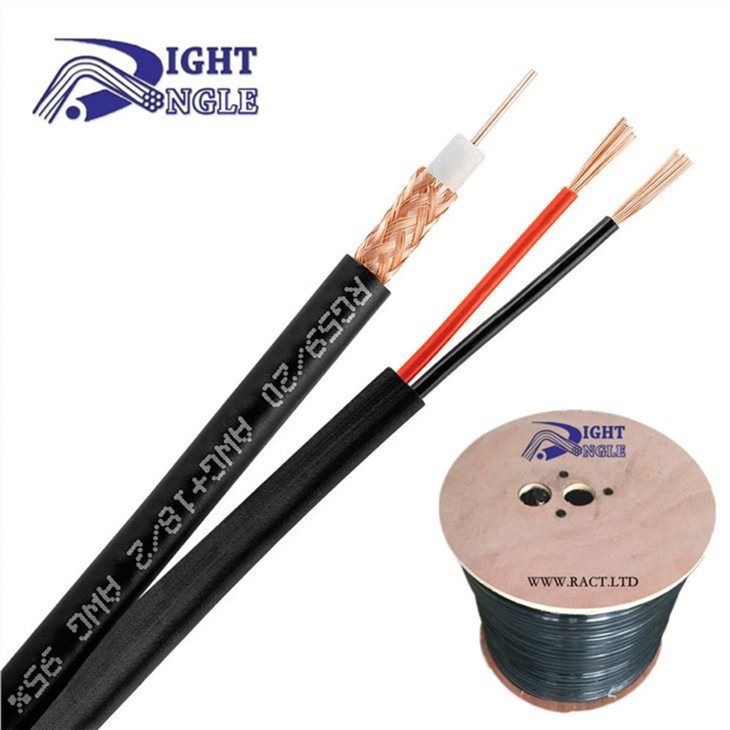

Boutique Purple Sheath 1mm2 Power Cable Camera Cctv

RG-59 Coaxial Cable/RG-59 Coaxial Cable
RG59 Coax Construction/RG59 Coaxial Cable Structure OD/Diameter (mm) Conductor/Conductor: Solid Copper/Bare Copper Wire 0.81 Dielectric/Insulator: Physical Foam Polythene/Foamed Polyethylene 3.66 Shield/Shielding Layer: Bonded Aluminum Foil+Aluminum Braid/Self-adhesive Aluminum Foil+Aluminum Magnesium Wire Braided Nom.4.10 Jacket/Jacket: PVC or Polythene/PVC or PE 6.10 RG 59 Cable Physical Characteristics/RG 59 Cable Physical Characteristics
Weight per/weight 100m: 5.0kg Minimum bend radius/minimum bending radius: 32mm Operating temperature range/operating temperature range: PVC: - 25 ℃ to+75 ℃/PE: - 45 ℃ to+80 ℃
RoHS compliance/RoHS: 2011/65/EU (RoHS) RG-59 Cable Electrical Characteristics/RG-59 Cable Electrical Characteristics
Impedance/impedance: 75+/- 2 ohms Capacity/capacitance: 52 pF/m Max Maximum voltage/Maximum voltage: 5000 Volts Velocity of propagation/Speed: 85%
Operating frequency/operating frequency: 1 GHz Screening effectiveness/shielding efficiency ≥ 40 dB (up to 1 GHz) Insulation resistance/insulation resistance: ≥ 1 x 108 M Ω m Max. operating voltage/maximum operating voltage ≤ 3.0 kVrms (at sea level) RG59 Attenuation/RG59 Attenuation:
Freq/frequency (MHz) Typical/typical value (dB/m) Max. CW power/maximum power
100 0.105 319 300 0.189 184 500 0.249 143 700 0.3 121 900 0.346 106 1000 0.367 10
