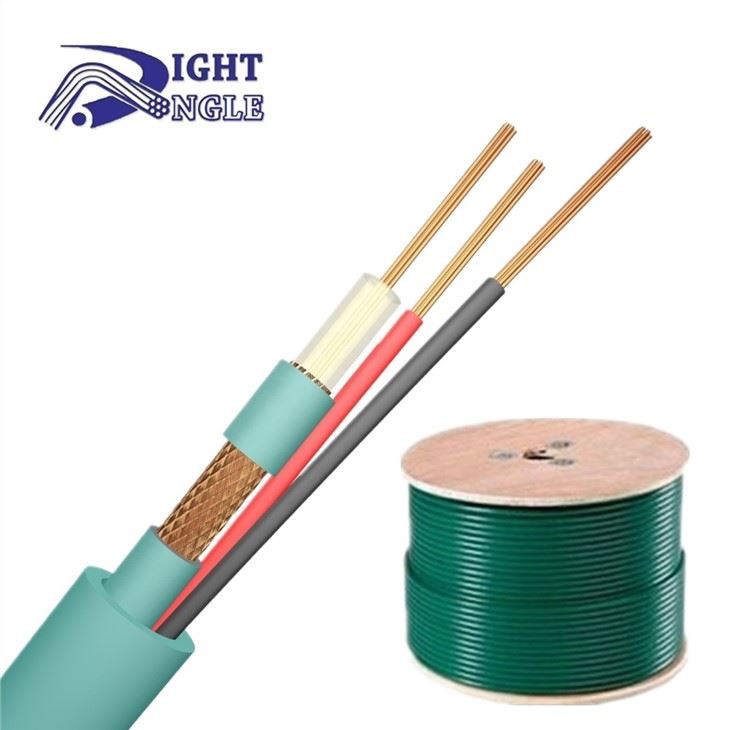

Kx6 With Power Coaxial Cable Cctv Camera Cable

Description

This is a high-quality monitoring system signal cable. The conductor of this kx7 with power cable is composed of multiple conductors. This cable has good flexibility, is not easy to break, and has good tensile strength. The material of the conductor also supports customization. CCTV camera...

Chat Now Send Inquiry

Product Details

Download specification

Inquiry

Inner Conductor (mm): 7*0.20mm BC Dielectric (mm): 3.66± 0.10 SPE Shield:CCA/AL Braids 128*0.12CCA

Power wire:2*7*0.38 mm CCA

Power Jackets: Black & Red PE

Big Out PVC Jackets Green color

Packing : 100M/Coil 4Coils/CTN

Packing : 300M/Wood drum 500M/Wood drum

* WLAN Home Systems infrastructure support cabling

* Security Video with Pan-Tilt-Zoom, IP Video

* Analog Video, LAN 10/100/1000BaseT Ethernet, Voice

* CATV-community antenna television

* CCTV-closed-circuit television

* DBS-direct broadcasting satellite

Introduction

The Kx6 Coaxial Cable is a high-performance cable used for CCTV (Closed Circuit Television) applications. It is an essential component of any CCTV system as CCTV requires a signal transmission between the camera and the recorder. The Kx6 cable has proven to be a reliable and consistent solution for CCTV applications.

Kx6 With Power Coaxial Cable

The Kx6 With Power Coaxial Cable is a commonly used CCTV camera cable. It is designed to transmit both data and power through a single cable, which makes it easier to install and more efficient. The cable is made up of an inner conductor, an insulating layer, a shield, and an outer sheath. The inner conductor is made of copper and is used to carry the electrical signal. The insulating layer separates the inner conductor from the shield to prevent electrical interference. The shield is a layer of copper wire mesh or aluminum foil that surrounds the inner conductor to protect it from external interference. The outer sheath is a protective layer that covers the entire cable and prevents damage from moisture, heat, and other external factors.

Advantages of Kx6 With Power Coaxial Cable

The use of Kx6 With Power Coaxial Cable for CCTV applications offers several advantages. One of the most significant advantages is that it is a high-quality cable with a low attenuation rate. This means that the electrical signal remains strong and clear even over long distances. The cable also has a high bandwidth capacity, which means that it can transmit large amounts of data quickly and efficiently. The Kx6 cable is also easy to install and can be used for a variety of applications, including outdoor and indoor installations.

Applications of Kx6 With Power Coaxial Cable

Kx6 With Power Coaxial Cable is widely used in CCTV applications, including security and surveillance systems. It is also used in commercial applications such as hospitals, schools, and shopping centers. The cable is suitable for both indoor and outdoor installations, making it a versatile option.
