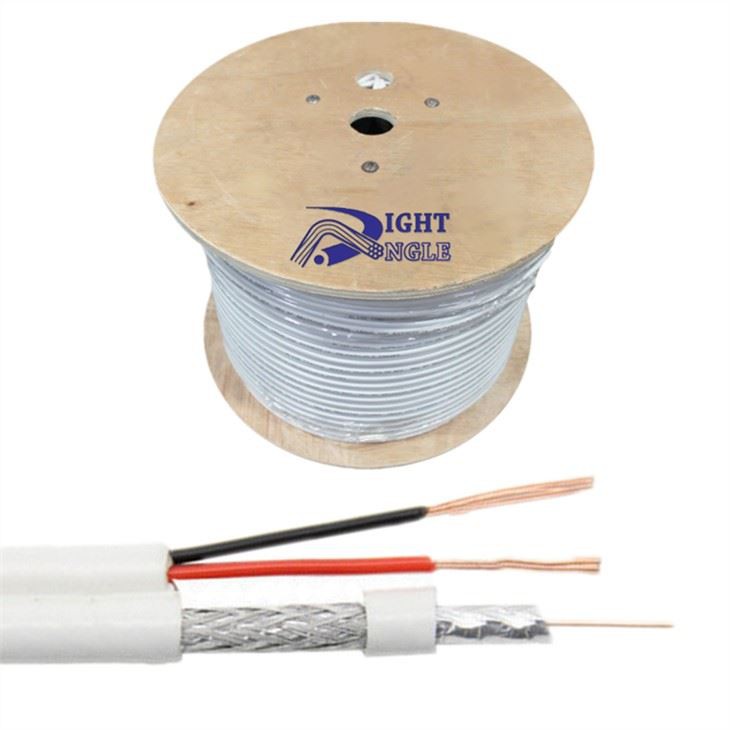

RG6+2C Cable

RG6+2C Cable: High-Quality and Safe Option for Reliable Communication



In today's world, communication is an essential part of our lives. From phone calls to internet surfing, almost every aspect of our lives depends on it. And behind every successful communication is a reliable cable that can transfer information fast and securely. One such cable is the RG6+2C Cable.





RG6+2C Cable Definition

RG6+2C Cable is a coaxial cable used to transmit audio and video signals over a long distance. It is named "RG6" based on its Radio Guide (RG) standard, with "6" indicating its impedance. It is also referred to as "quad shielded cable" due to its four layers of shielding that protect it from electromagnetic interference (EMI) and radio frequency interference (RFI). Besides, the "2C" in its name indicates that it contains two conductors, which are often used for powering devices.





Features of RG6+2C Cable

1. High-Frequency Range

RG6+2C Cable is designed to carry high-frequency signals and can support a frequency range of up to 3GHz. This makes it ideal for transmitting multiple audio and video calls without distortion or signal loss. The cable's high-frequency range also makes it perfect for connecting devices such as HDTVs, cable modems, and satellite dishes.

2. Impedance

The RG6+2C Cable's impedance of 75 ohms is crucial in ensuring that the cable transmission line matches the source and load inputs' impedance. This impedance matching guarantees that the signal transmitted through the cable is efficient and has minimal loss.

3. Quad Shielded

The RG6+2C Cable is quad shielded, making it resistant to EMI and RFI. The four layers of shielding are vital in reducing signal noise and interference, which can cause poor signal quality, leading to slow internet speeds, and reduce audio and video quality.

4. PVC Jacket

The cable's PVC jacket is a durable and flexible material that is resistant to tearing, abrasion, and environmental factors like sunlight, heat, and chemicals. The PVC jacket makes the cable ideal for both indoor and outdoor use.

5. Copper Conductor

The RG6+2C Cable's copper conductor is an excellent conductor of electricity and has good thermal conductivity. This improves the cable's signal transmission, reduces signal loss, and reduces interference from other electronic devices.





Quality of RG6+2C Cable

The RG6+2C Cable's quality is of utmost importance towards the end-users. The cable's quality depends on the quality of the raw materials used, the production process involved, and the standards used to manufacture the cable. Here are some ways in which the RG6+2C Cable's quality stands out.

1. Raw Materials

The RG6+2C Cable's production process starts with the raw materials used. The copper conductor used is of the highest quality, ensuring that the cable can transmit signals efficiently. The PVC jacket used is UV resistant, fire retardant, and has excellent mechanical strength, ensuring that the cable can last longer.

2. Manufacturing Process

The production process used to manufacture the RG6+2C Cable ensures that the cable is of the highest quality. The cable is tested at different stages of production to ensure that the end product meets the required standards. Furthermore, the manufacturing process is automated, ensuring consistency in the quality of the finished product.

3. Standards

The RG6+2C Cable is manufactured according to international and national standards like UL, CE, and RoHS. These standards ensure that the cable is safe and that it meets the required specifications like impedance, frequency range, and shielding.

Safety of RG6+2C Cable



The RG6+2C Cable is safe for use both indoors and outdoors. The cable's PVC jacket is fire retardant, ensuring that the cable does not burn quickly and that it emits minimal toxic fumes in case of a fire. The cable also meets the required safety standards, ensuring that it is safe to use and will not cause electrical faults or pose any danger to the users.



Construction

Conductor	Material	BC / CCS
	Diameter	1.02mm ± 0.02 mm
	Wire Gauge	18 AWG
Insulation	Material	FPE
	Diameter	4.57 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	AP
	Width	18 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	AL
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
	Diameter	7.0 mm ± 0.5 mm
Power Conductor	Material	BC / CCA
	Diameter	24 x ( 0.2 mm ± 0.02 mm )
Power Insulation	Material	PE
	Diameter	2 x ( 1.7 mm ± 0.02 mm )
Power Jacket	Material	PVC
	Diameter	3.4 mm ± 0.3 mm



Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional



Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)



Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020



Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
5	0.58	1.90
55	1.60	5.25
187	2.85	9.35
300	3.55	11.64
450	4.40	14.43
600	5.10	16.73
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49
1450	7.98	26.16
1800	8.46	27.73
2250	10.38	34.03
3000	11.44	37.50
