Flexible RG213 Coax Cable

Description

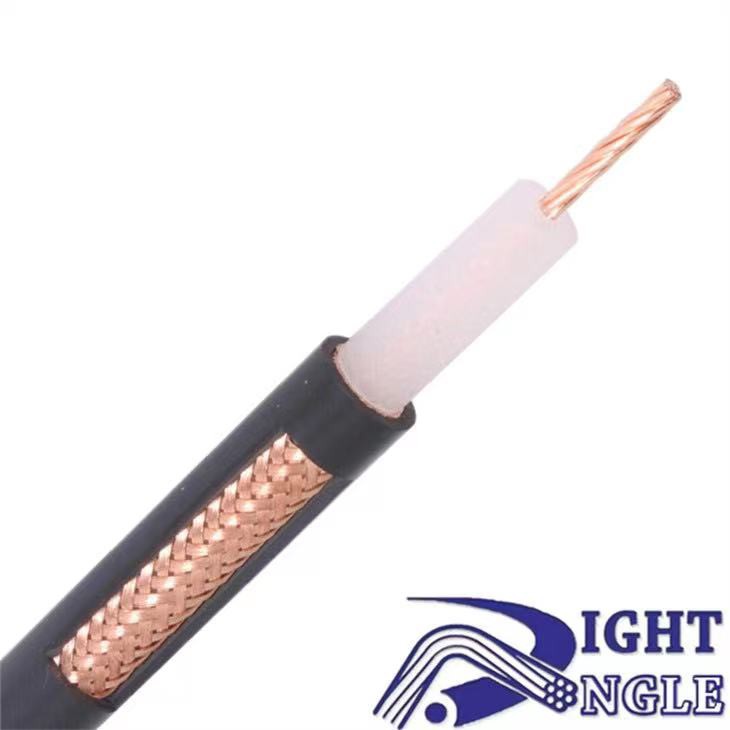

RG213 is an indoor/outdoor, low-loss, 50-ohm, rugged coaxial cable. RG 213 uses bare copper outer conductor, solid PE dielectric and stranded bare copper central conductor. The mechanical properties of the cable (such as solid PE dielectric) provide excellent compression resistance, so it is very suitable for tactical applications. PVC sheath and stranded central conductor help to achieve excellent flexibility. This cable has a variety of connectors to choose from, including all common interface types.

Chat Now Send Inquiry

Product Details

Download specification

Inquiry

Construction specification
Describe material size
Inner conductor 7 strand bare copper 7/0.75 mm
Dielectric solid polyethylene 7.25mm
Outer conductor bare copper 8.11mm
Jacket PVC 10.30mm
Electrical specifications
Describe unit value
Impedance ohm 50
Capacitance pF/m 100
Propagation speed% 66
Maximum voltage flying 1500
Maximum frequency 3000 MHz
temperature range
-20/+80 ℃
Mechanical specifications
Performance attribute value unit
Bending radius (installation) 50 mm
Weight 0.15 kg/m
0.405 inch diameter
10.3 mm diameter
Attenuation and frequency
Frequency megahertz attenuation unit
200 10.8 dB/100m
400 15.5 dB/100m
900 24.1 dB/100m
1800 35.5 dB/100m
2000 37.7 dB/100m
3000 47.9 dB/100m
