UTP Cat6 Network Cable

Our advantage:

1. Strong signal transmission ability Environmentally friendly PVC sheath with bright color on the surface. The wire core is twisted with high density, and the signal transmission ability is strong.

2. Low resistance The resistance of a 300-meter box is about 28.2. If it is an all-copper network cable made of ordinary recycled copper, the resistance will be high, the color of the wire core will be dark yellow, and the signal transmission ability will be poor, and the transmission will be unstable.

3. Signal transmission is stable. The wire core is made of 99.99% oxygen-free copper core, which has good electrical performance, low crosstalk and low resistance, and is suitable for various monitoring network wiring applications.



UTP Cat 6 (Unshielded Twisted Pair Category 6) network cable is a type of twisted-pair cable that is used primarily for Ethernet networking. This type of cable is designed to be faster and more reliable than earlier versions of networking cables, such as Cat 5 and Cat 5e. The UTP Cat 6 cable is used to connect devices to a local area network, whether in homes, offices or data centers.

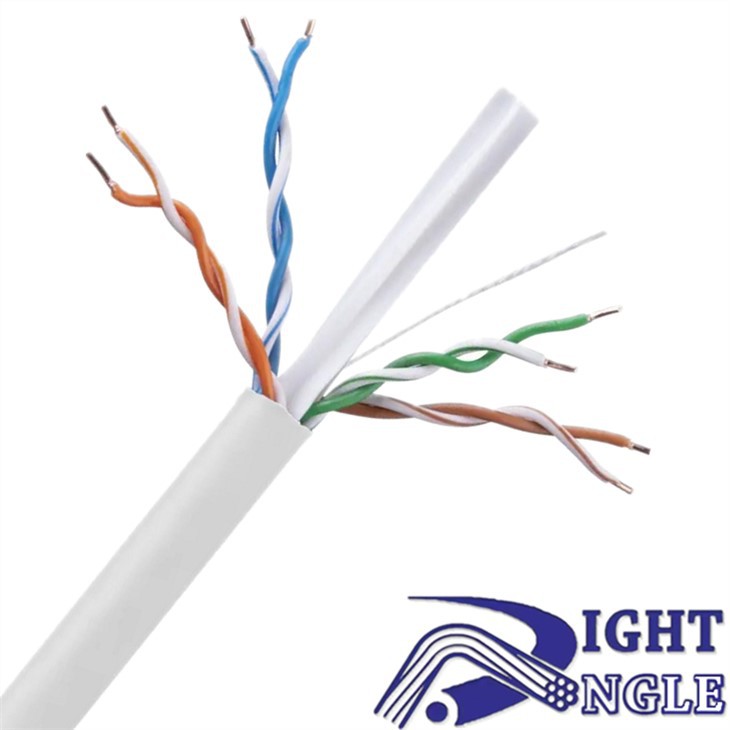

The cable is composed of four pairs of twisted wires, which are color-coded to help users connect them properly. The pairs of wires are twisted together in a specific pattern to reduce electromagnetic interference and crosstalk between the pairs. The cable is unshielded, meaning that there is no metal layer surrounding the pairs of wires to protect them from interference.



The UTP Cat6 cable has a maximum bandwidth of 250 MHz, which makes it suitable for transmitting large amounts of data quickly and efficiently. This high bandwidth allows for fast download and upload speeds as well as smooth streaming of multimedia content. The cable is also backward compatible with Cat 5 and Cat 5e cables, so it is possible to use UTP Cat 6 cables in networks that have these older cables installed.



In terms of length, UTP Cat 6 cables can be run up to a maximum distance of 328 feet or 100 meters before signal degradation occurs. This means that the cable can be used to connect devices that are located far apart without sacrificing speed or quality.



UTP Cat6 cables are available in different lengths, ranging from 1 foot to 1000 feet, and are sold in colors such as blue, green, yellow, and black. The length of the cable needed depends on the location and size of the network.



UTP Cat6 cables are easy to install and maintain. They are designed to be plugged directly into devices without the need for adapters or special equipment. The cable can be terminated with an RJ45 connector, which is the most common type of connector for Ethernet networks.



When installing UTP Cat6 cables, it is important to observe proper cable management. The cables should be neatly organized and labeled to make it easy to trace them in case of a problem. Additionally, the cables should be kept away from sources of interference, such as fluorescent lighting, power cables, and other electronics.






Product Specification

Conductor	Material	BC ( Customized: CCA /CCC )
	Diameter	0.57 mm ± 0.02 mm
	Wire Gauge	23 AWG
Insulation	Material	HDPE
	Diameter	1.02 mm ± 0.1 mm
Separator	Material	PE
	Specification	4.5 mm ± 0.2mm
	Thickness	0.4 mm ± 0.02mm
Rip Cord	Material	Polyester
	Specification	500 D
Jacket	Material	PVC (Customized optional: PE/PVC+PE/LSZH)
	Diameter	6.0 mm ± 0.3 mm



Packing

Single package	Easy pull box
Package length	305m (Optional custom length)
Outer package	Carton box (2×Easy pull box)
Waterproof packaging	Optional



Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	>8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)



Certifications and Standards

Vertical Fire Propagation Test	Comply with IEC 60332-1-2
Certification	CPR Eca
Executive Standards	Q/DXJ 067-2019, EN50575-2014
