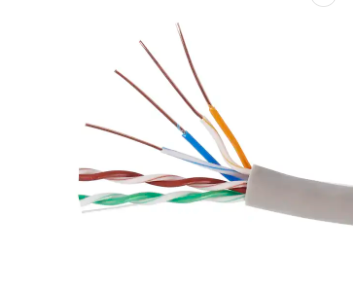

Cat5e Network

Description

Cat5e cable is a twisted pair network cable used for 100Base-TX Ethernet applications at speeds of up to 100MHz bandwidth. This cable is preferred for more advanced networking installations where higher bandwidth than normal is required

Chat Now Send Inquiry

Product Details

Download specification

Inquiry

We use copper conductors made of a single piece of metal. It is harder than a stranded ladder, but rigid and less

Flexible as a stranded ladder.

Spline

The term spline comes from the flexible. The spline is used to reduce cross-talk and interference between the copper

Ladder. Another advantage of Cat6 is that it supports much faster data everywhere.

Ripcord

Ripcord is used to cut through the jacket/casing of the wire called plenum jacket so you don't have to use a knife.

*100% PURE COPPER LEADER

*Compatible with indoor and outdoor use

*FREE SIMPLE PULL BOX PACKING

UTP Lan Cable
Cable type and number of pairs: cable UTP (unshielded twisted pair) to the internal pads, 4 pairs (fixed),
Electrical power:
1,0-100,0 MHZ Impendance(ohm) 100 ± 15
1,0-100,0 MHZ Impendance Delay Screw (ns/100m)<45
Pair to ground Capacity unbalance (PF/100M)330 Max
Conductor DC resistance 20%(ohm/km)<93,8
Resistance unbalance (%) 5
Test object: jacket
Test material: PVC
Pre-tensile strength (Mpa)≥ 13.8
Aging elongation (%)≥ 100
Aging condition (C xhrs) 100*240
After tensile strength (Mpa)≥ 85% of unaged
Aging elongation (%)≥ 50% of naged
Cold bending (-20 ± 2℃4hrs) No crock
Cable data:
Conductor: Solid solid copper
AWG:24
Conductor diameter (mm): 0.51
Insulation: PE
Average thickness (9 ± 0,03mm): 0,20
Min point thickness: 0,17
Insulation Dia(±0,03mm): 0,91
Twistiing lay length (mm):30 undemeath
Cabling lay length (mm):200 undemeath
Jacket: PVC
Average thickness: 0.5
Min point thickness: 0,43
Qutor Dia (I 1,0mm): 5,1
Rip Cord: YES
Weight Nom(kg/km):32
Core Color: Blue-white/nlue,Orange-white/orange
Green_white/green, Brown_white/brown
