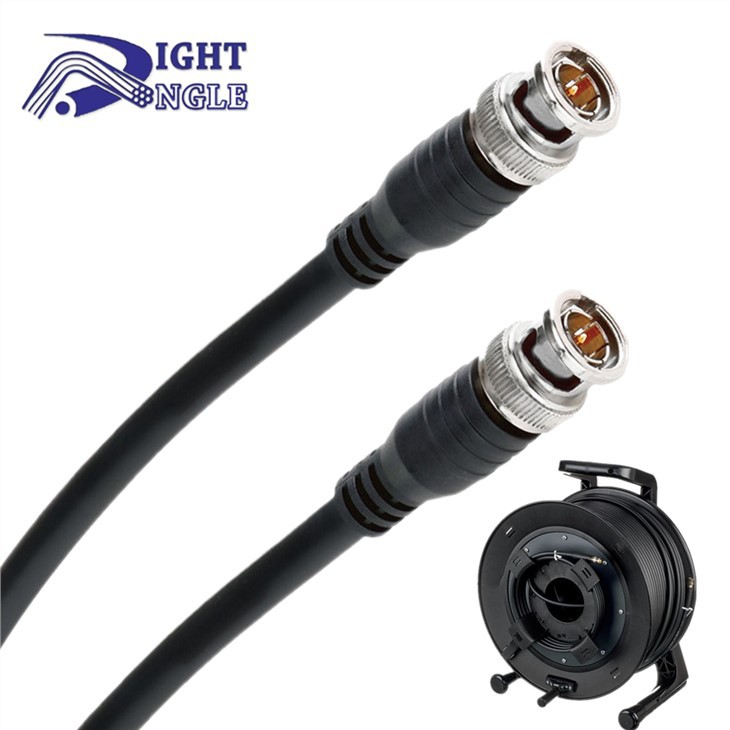

Promotion Winder 3g Hd Sdi

Now, what is SDI? SDI stands for serial digital interface or SDI cable for short. It is a standard used for transmitting digital video over long distances. It is the most common cable found; all the broadcasters prefer SDI and use it.

The cable that connects your TV set-top boxes or TVs is probably an SDI cable. SDI cable belongs to the family of digital video interfaces.

The Society of Motion Picture and Television Engineers [SMPTE] gave its name in 1989. It is pretty old compared to HDMI, display port, DVI, or VGA connector. You can think of SDI cable as a grandfather, while the others as grandchildren.

SDI cable was first standardized in 1989, but it’s 2019 now. SDI cable has gone through many upgrades over the decades. The enhancements are mostly done to increase signal quality and transmit more data.

Whether watching a live show or regular television, SDI cable brings you that feed. The reason for the SDI cables preference over other cables is:

Transmission of audio and video over the long-range [300ft]. Amplifiers and repeaters increase this range even further.

Has a BNC connector which has a lock-in mechanism.

Cheaper compared to other cables as it is mass-produced.

It’s reliable, robust, and sturdy.

Works wonders while sending uncompressed audio and video signals.

Now, there are various standards of SDI cable. Here is a look.

SD-SDI, with a bit rate of 270Mbit/s, was introduced in 1989. It can transmit a video format of 480i and 576i.

HD-SDI, with a bit rate of 1.485Gbit/s, was introduced in 1998. It can transmit a video format of 720P/1080i.

3G-SDI with a bit rate of 2.970Gbit/s introduced in 2006. It can transfer a video format of 1080P 60F/s.

6G-SDI with a bit rate of 6Gbit/s introduced in 2015. It can transmit a video format of 4K 30F/s.

12G-SDI with a bit rate of 12Gbit/s introduced in 2015. It can transfer a video format of 4K 60F/s.

24G-SDI is already in development, with a bit rate of 24Gbit/s.

Now time for some technical stuff. Do you know how data goes through? Here is a simple rundown. The data go in packets called payloads.

At the same time, the information about the destination is in the header. Video payloads in the earlier versions of SDI were a far cry compared to the new ones.

The higher the video payload, the higher will be the video definition. Have you ever wondered how the secondary data, such as subtitles, stock files, etc., come into your live feed?

This answer is blank. Blanking is the interval between the end of the last line of the frame to the first line of the next frame.

There are three types of blanking – Horizontal, Vertical, and Field. Blanking is used earlier for better video quality during CRT TVs.

Nowadays, it’s more to carry secondary data and audio-video synchronization. SDI cable uses a real-time transport protocol [RTP].

It helps in the real-time transmission of data on multiple channels. That also helps in better payload and hence, better video quality.

 SDI checking is important. Some tests are a must for ensuring that SDI is performing satisfactorily. Some of those checks are:

SDI check field

In-service testing

Eye pattern testing

Jitter testing

SDI cables go through these checks. It results in the brilliant transmission of audio and video. SDI status display also gives a summary of several physical layer measurements.

For one, this helps in better configuration. There is an automatic change of the filter settings according to the signal. During configuring the settings for the transmission, these work wonders.
