Description

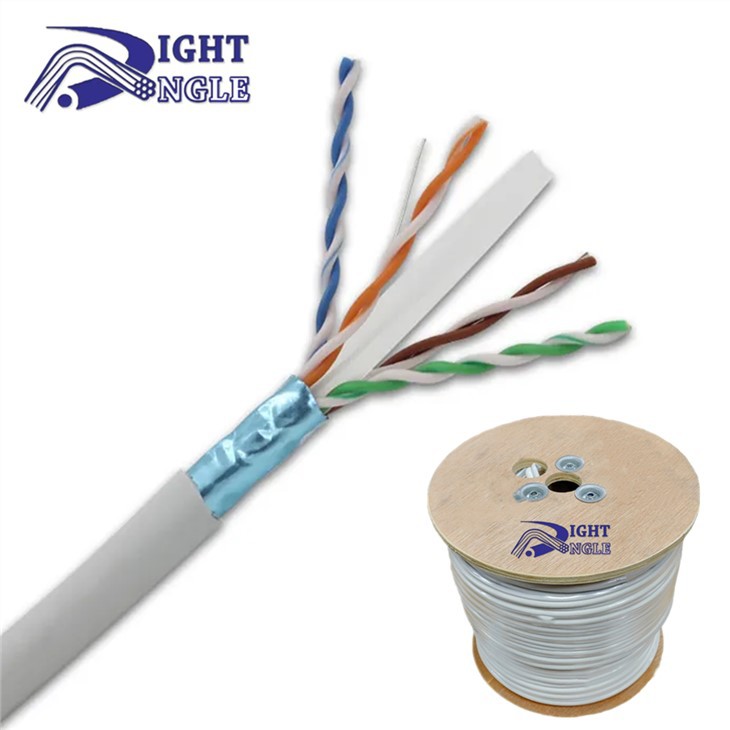

The cross skeleton in the center of the cable rotates the angle with the change of length, and the four pairs of twisted pairs are stuck in the grooves of the skeleton, maintaining the relative position of the four pairs of twisted pairs, improving the balance characteristics and crosstalk attenuation of the cable.
Share:
Material description
1. CCA or soft plain copper.
2. Environmental protection, pollution-free and new material selection. Only new materials are promised.
3. Insulation: solid high-density polyethylene.
4. Environmental protection PVC sheath, high temperature resistance, long service life.
Physical electrical properties
It adopts standard stranded structure design, and the upload and download transmission speed of small crosstalk signal transmission is fast.
The bandwidth is standard 250MHz and supports 10 Gigabit Ethernet network word transmission requirements.
DC resistance (max): 8.100 Ω/20m at 4 °C; Mutual capacitance (max.): 5.6 nF/100m;
Unbalanced capacitance (max.): 330pF/100m;
Dielectric strength between conductors (min): 2.5 kV/2s;
Impedance: 1-250MHz 100 ± 15Ω;
Differential Phase Delay (Max): 45ns/100m;
Working temperature: -20~+60°C;
Permissible bending radius: 10 times the diameter of the cable.
