Description

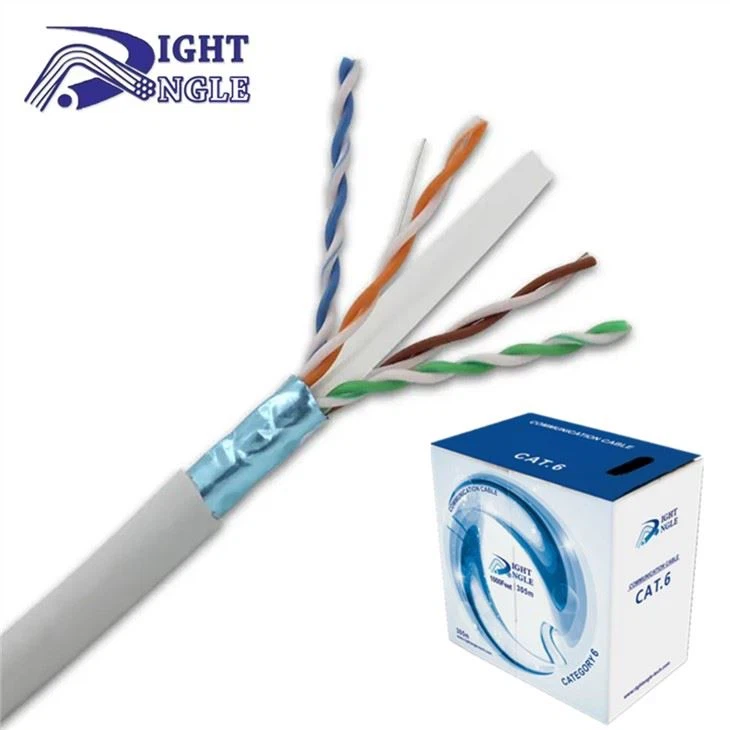

The cross skeleton in the center of the cable rotates with the change of length. Four pairs of twisted pairs are stuck in the groove of the skeleton, maintaining the relative position of the four pairs of twisted pairs, and improving the balance characteristics and crosstalk attenuation of the cable.
Share:
Product description:
1: The six types of wires are made of 23AWG pure oxygen-free copper, which has the characteristics of oxidation resistance and long service life.
2: The transmission frequency of Category VI cable is from 1MHz to 250MHz. The PS-ACR of the six cabling systems at 200MHz should have a large margin, providing twice the bandwidth of the five cabling systems. The transmission performance of Category 6 cable is far higher than that of Category 5 standard, which is suitable for applications with transmission rate higher than 1Gbps.
3: Six types of wires can be divided into unshielded twisted pair (UTP) and shielded twisted pair (FTP). The outer layer of shielded twisted pair is wrapped by aluminum platinum, which can reduce radiation, but can not completely eliminate radiation. The price of shielded twisted pair is relatively high, and it is more difficult to install than unshielded twisted pair.
Product use:
It can be used for circuit conversion and connection of communication equipment and other electronic equipment. The product is equipped with distribution frame/module/computer, and the connection relationship requires the use of the same series of standard connectors. It is applied to LAN equipment, data communication, office computer internet access, generic cabling (mainly used for network interface information point jump/transfer, etc.)
Electrical performance:
Working voltage: 12V, 100% passing FLUKE test.
5、 Physical properties:
The insertion force shall not be greater than 20N, and the extraction force shall not be less than 20N; Function of connector connecting device: 50N 60 ± 5s; Times of plug and socket: 750 times.
Use and storage environment:
Temperature: - 40~+70 ℃; Humidity:<85% (temperature 85 ℃± 3 ℃)
